Centrifugal immersion pumps
For pumping and circulating large volumes incl. aggressive and abrasive media

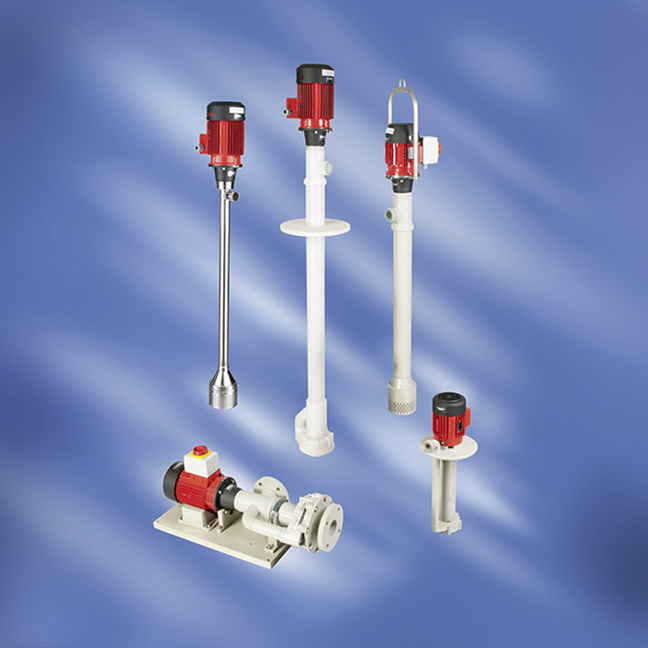

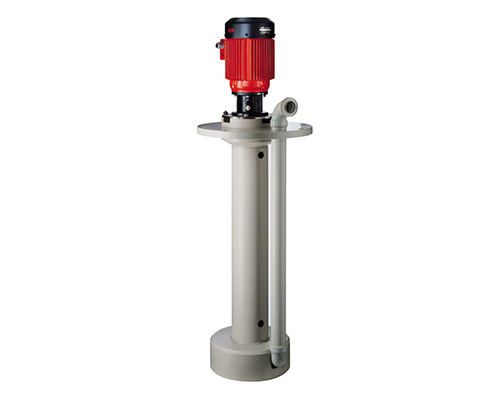

FLUX centrifugal immersion pumps are used when larger flow rates, continuous running or special immersion lengths are required. They are especially suitable for pumping and circulating aggressive and abrasive media. There is a choice of different materials available depending on the chemical and thermal requirements. In addition sealless and horizontal versions are available. FLUX centrifugal immersion pumps are individually configured and manufactured according to the technical requirements in each case.
Overview Industry sectors
Technical data:
- For containers: ~ 1000 l IBCs, tanks > 1000 l, as process pump
- Delivery rate: max. 74 m3/h*
- Delivery head: max. 35 mwc*
- Viscosity: max. 2.500 mPas*
- Motor drive: electric/pneumatic
* dependent on pump model, medium and motor
