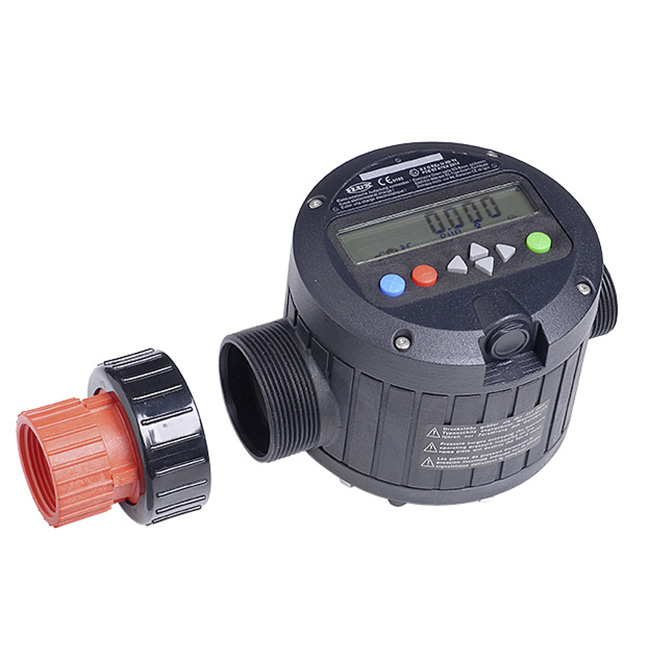

FMJ 100
For manual filling of various fluids
![Branch: Industry Branch: Industry](files/flux-pumps/stories/flux-de/products/industry-icons/ind_industry.png)
![Branch: Surface technology Branch: Surface technology](files/flux-pumps/stories/flux-de/products/industry-icons/ind_surface-technology.png)
![Branch: Petrochemistry Branch: Petrochemistry](files/flux-pumps/stories/flux-de/products/industry-icons/ind_petrochemistry.png)
![Branch: Agriculture Branch: Agriculture](files/flux-pumps/stories/flux-de/products/industry-icons/ind_agriculture.png)
![Branch: Water treatment Branch: Water treatment](files/flux-pumps/stories/flux-de/products/industry-icons/ind_water-preparation.png)
![Branch: Paints and lacquers Branch: Paints and lacquers](files/flux-pumps/stories/flux-de/products/industry-icons/ind_dye-lacquer.png)
![Branch: Chemistry Branch: Chemistry](files/flux-pumps/stories/flux-de/products/industry-icons/ind_chemical.png)
The FLUX flow meter FMJ 100, built according to the nutating disc principle, can be used with FLUX drum pumps e.g. with the evaluation unit FLUXTRONIC® the filled quantity can be displayed. This way filling and dosing processes of almost all kinds of fluids can be performed with maximum precision and highest safety.
Technical data:
- Flow rate: min. 10 l/min - max. 100 l/min
- Filling accuracy: +/- 1 %
- Operating pressure: max. 4 bar
- Size of solids: max. 1,5 mm
- Viscosity: min. 1 mPas - max. 2500 mPas
- Housing Materials: Polypropylene
- Media / Fluids: Acids, Alkalis
Product attributes
- Nutating disc meter
- Inductive counter - independent of the conductance of the medium
- Insensitive to small solids
- Easy handling
- Easy assembly on pump
- No metals in the medium area
- Low weight
- No mains connections required
Benefits
- Insensitive to small solids
- Easy handling
- Easy assembly on pump
- Also for non-lubricating media
- Media examples
Battery acid, formic acid, ammonia, formic acid, boric acid, brake fluid, calcium chloride, ferric-III-chloride, photo developers, glycole, mineral oil, sodium hydroxide, phosphoric acid, hydrochloric acid, sulfuric acid to 60 %, tartaric acid, zinc chloride, citric acid
