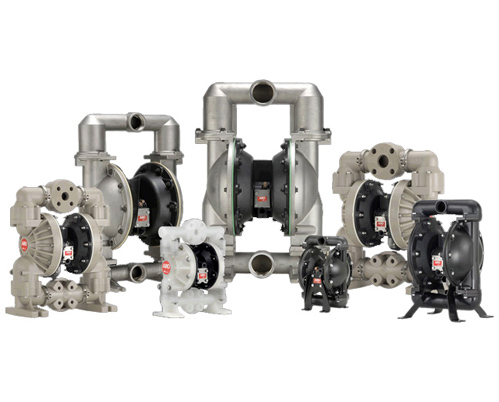

Double diaphragm pumps from the PRO series
Ideal for general industrial and OEM installation applications
The compressed air-driven diaphragm pumps from the PRO series are ideal for general industrial and OEM installation applications. The double diaphragm pumps deliver a high pump output of up to 897 l/min for products ranging from clean, low-viscosity liquids to corrosive, abrasive, medium-viscosity liquids and can pump large particles without any damage.
Most ARO® diaphragm pumps are also ATEX-certified (CE Ex11 2GD X).
Advantages of double diaphragm pumps from the PRO series:
- Seal-free construction
- Low material wear translates into high reliability
- Rapid maintenance and repairs thanks to easy access to ball retaining valves and liquid covers
- Multiple connection options provide flexibility for the intended use
- Can be run dry without incurring any damage
- Mobile use
- Self-priming
- Simple installation
- Available for use in hazard zones (ATEX, NEC and CEC certifications)
The diaphragm pumps from the PRO series are available in the following materials
| Non-metallic material | Polypropylene, Acetal and PVDF |
|---|---|
| Metallic materials | Aluminium, Cast iron, Stainless steel and Hastelloy |
Overview of ARO® plastic double diaphragm pumps from the PRO series
| Nominal width | 1/2" | 1" | 1 1/2" | 2" |
|---|---|---|---|---|
| Maximum volumetric flow (l/min) | 54,5 | 178 | 378,5 | 548,8 |
| Maximum outlet pressure (bar) | 6,9 | 8,3 | 8,3 | 8,3 |
| Material connection | 1/2" NPT, BSP |
1" NPT, BSP, ANSI / DIN flange |
1 1/2" ANSI / DIN flange |
2" ANSI /DIN flange |
| Air connection | 1/4" NPT | 1/4" NPT | 1/2" NPT | 1/2" NPT |
| Materials | Polypropylene Groundable acetal |
Polypropylene | Polypropylene | Polypropylene |
| Maximum proportion of solids (mm) | 2,4 | 3,2 | 6,4 | 6,4 |
| ATEX | Yes, with conductive acetal |
- | - | - |
*Further versions with different nominal widths (1/4", 3/8", 3/4") on request
Overview of ARO® metallic double diaphragm pumps from the PRO series
| Nominal width | 3/4" | 1" | 1 1/2" | 2" | 3" |
|---|---|---|---|---|---|
| Maximum volumetric flow (l/min) | 51,5 | 133 | 340,7 | 651 | 897 |
| Maximum outlet pressure (bar) | 6,9 | 8,3 | 8,3 | 8,3 | 8,3 |
| Material connection | 3/4" NPT, BSP |
1" NPT, BSP |
1 1/2" NPT, BSP |
2" NPT, BSP |
3" NPT, BSP |
| Air connection | 1/4" NPT | 1/4" NPT | 1/2" NPT | 3/4" NPT | 3/4" NPT |
| Materials | Aluminium | Aluminium, Cast iron Stainless steel |
Aluminium, Cast iron Stainless steel |
Aluminium, Cast iron Stainless steel |
Aluminium, Cast iron Stainless steel |
| Maximum proportion of solids (mm) | 2,4 | 3,2 | 6,4 | 6,4 | 9,5 |
| ATEX | All types | All types | All types | All types | All types |
*Further version with nominal width (1/2") on request
